SQL Window Functions

Window functions are a powerful tool in SQL that allow you to perform complex calculations on groups of rows that are related to the current row.

How they work

You might be wondering, what does "window" mean? In a standard SQL query, all sets of rows are treated as one continuous block of data, and aggregate values are calculated for that block. However, when window functions are applied, the query is segmented into groups of rows, or "windows," and individual aggregate values are calculated for each segment. The window that is passed to the window function can be:

  • the entire table,
  • separate partitions of the table, which are groups of rows based on one or more fields,
  • or even a specific range of rows within the table or partition.

For example, you can define a window that consists of the previous row plus the current row of the table. In this case, the aggregate function value will be calculated differently for each row, as the data passed to the function dynamically changes from row to row. The window "slides" through the table.

Visualization

Window functions always take a window of data as input, specified by the user, and return the result in a separate column. Let's consider an example using the AVG window function to calculate the average value. Here's a small table:

Initial table

Now let's see how the window function works for different windows:

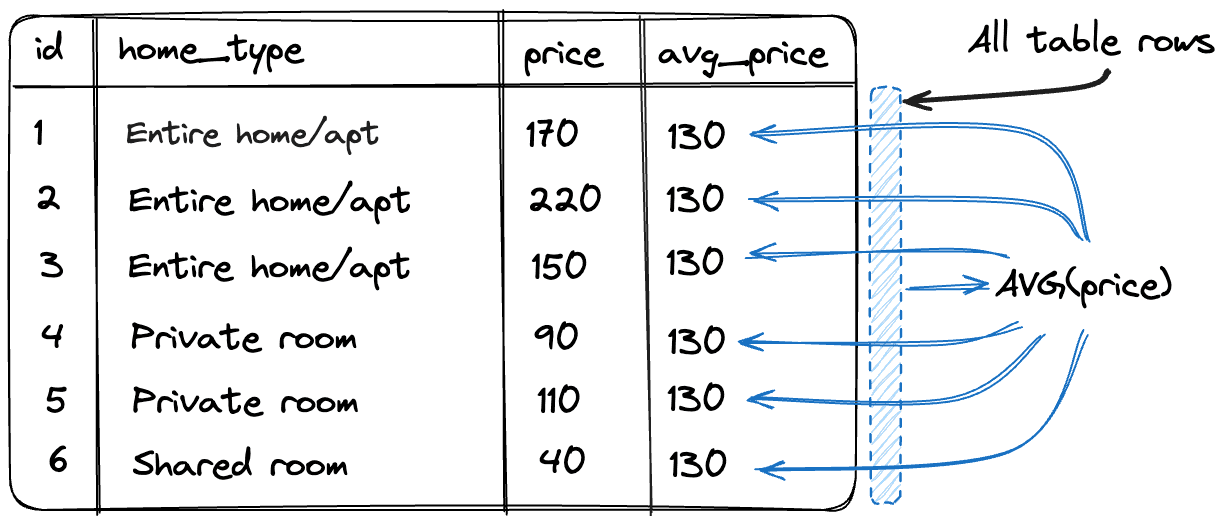

  • If the entire table is specified as the window, the window will be the same for all rows, and the same set of data will be passed to the AVG function, resulting in the same result.

    Partitioning schema

  • If a partition is specified based on the home_type field, the AVG function will receive a set of residential properties with the same type, and the result will show the average cost of housing for the type that matches the current row.

    Partitioning schema

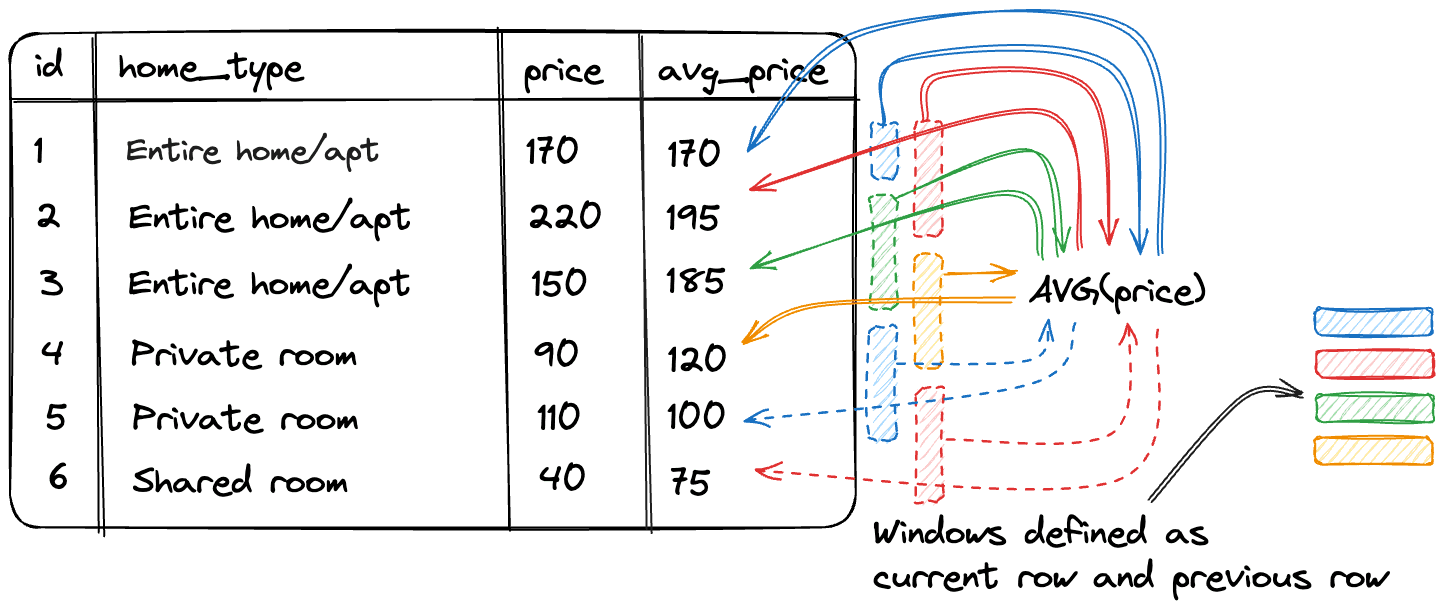

  • A more specific set of rows can also be specified as the window. For example, the window can be defined as the "previous row + current row" of the table. In this case, it would look like this:

    Partitioning schema

    It's worth noting that for the first row, the window will consist of only one record, as there is no previous row.

Syntax of window functions

MySQL
SELECT <window_function>(<table_field>)
OVER (
      [PARTITION BY <partition_columns>]
      [ORDER BY <sort_columns>]
      [ROWS|RANGE <range_definition>]
)

Where:

  • <window_function>(<table_field>) is the window function being used, e.g., AVG(price).
  • OVER is used to define the window (group of rows) that will be passed to the window function. If OVER() is left without parameters, the window will be the entire table.

Within OVER, there are three optional parameters that allow you to customize the window:

  • PARTITION BY <partition_columns> divides the data into non-overlapping subsets, where each subset contains rows with the same values in one or more columns, creating partitions.
  • ORDER BY <sort_columns> sets the order of the rows within the window. This is particularly important for ranking window functions.
  • ROWS|RANGE <range_definition> defines the range of rows. This parameter allows you to specify how many rows to include before and after the current row in the window.

We will delve into each of these parameters in more detail in the following articles.

Example of using window functions

Let's use window functions to get a list of students and their class sizes.

First, let's retrieve a list of students and their corresponding class IDs:

MySQL
SELECT
    Student.first_name,
    Student.last_name,
    Student_in_class.class
FROM
    Student_in_class
JOIN
    Student ON Student_in_class.student = Student.id;
first_namelast_nameclass
NikolajSokolov9
VyacheslavEliseev9
IvanEfremov9
AnatolijZHdanov9
GeorgijNoskov9
ArtyomSergeev9
ArinaEvseeva9
AngelinaVoroncova9
EkaterinaUstinova9
RaisaLapina9
LeonidIgnatov9
SnezhanaSeliverstova9
SemyonBiryukov9
GeorgijBaranov8
YUliyaVishnyakova8
ValentinaBolshakova8
LeonidKryukov8
VladislavCvetkov8
SnezhanaMorozova8
LyubovBorisova8
AnfisaKalashnikova8
AnnaOsipova8
KristinaMyasnikova8
KristinaSmirnova8
BorisSimonov7
DmitrijTrofimov7
YAkovRozhkov7
FyodorDrozdov7
GlebStrelkov7
AngelinaLukina7
NinaOdincova7
ValeriyaNovikova7
GrigorijKapustin7
VitalijPanfilov7
SvyatoslavTarasov6
MatvejYAkushev6
IlyaAlekseev6
LyubovZaharova6
PolinaSidorova6
ElizavetaSamojlova6
YUliyaAvdeeva6
MatvejBogdanov6
IlyaFilippov6
DenisMel6
SvyatoslavMuravyov6
AnnaKulagina5
ZHannaFokina5
ValeriyaLapina5
ValentinaSazonova5
NataliyaMyasnikova5
ViktoriyaMakarova5
StanislavLazarev5
GennadijOvchinnikov5
RomanSHilov4
TimurSubbotin4
DanilaOsipov4
ArinaSilina4
NadezhdaZaharova4
LarisaSHCHerbakova4
AleksandraBelozyorova4
NatalyaDavydova4
MariyaFadeeva4
YUrijMarkov3
KirillSHubin3
GrigorijKolobov3
SemyonTrofimov3
VasilijUstinov3
ValentinaSHarova3
LarisaSavina3
GalinaOrekhova3
ArinaSHarapova2
ViktoriyaSergeeva2
VasilijKrasilnikov2
TimurRusakov2
GlebNesterov2
DenisMakarov2
ElizavetaSHilova2
VeraEvseeva1
MargaritaKabanova1
AngelinaLazareva1
SemyonVoronov1
InnokentijNekrasov1
ArtyomNikitin1
EgorBelyakov1

To calculate the number of students studying in each class and display this information in a new column, we can use a window function:

MySQL
SELECT
    Student.first_name,
    Student.last_name,
    Student_in_class.class,
    COUNT(*) OVER (PARTITION BY Student_in_class.class) AS student_count_in_class
FROM
    Student_in_class
JOIN
    Student ON Student_in_class.student = Student.id;
first_namelast_nameclassstudent_count_in_class
EgorBelyakov17
ArtyomNikitin17
InnokentijNekrasov17
SemyonVoronov17
AngelinaLazareva17
MargaritaKabanova17
VeraEvseeva17
DenisMakarov27
ArinaSHarapova27
ViktoriyaSergeeva27
VasilijKrasilnikov27
TimurRusakov27
GlebNesterov27
ElizavetaSHilova27
KirillSHubin38
YUrijMarkov38
GrigorijKolobov38
SemyonTrofimov38
ValentinaSHarova38
LarisaSavina38
GalinaOrekhova38
VasilijUstinov38
TimurSubbotin49
RomanSHilov49
DanilaOsipov49
ArinaSilina49
NadezhdaZaharova49
LarisaSHCHerbakova49
AleksandraBelozyorova49
NatalyaDavydova49
MariyaFadeeva49
GennadijOvchinnikov58
StanislavLazarev58
ViktoriyaMakarova58
NataliyaMyasnikova58
ValentinaSazonova58
ValeriyaLapina58
ZHannaFokina58
AnnaKulagina58
IlyaFilippov611
SvyatoslavMuravyov611
DenisMel611
MatvejBogdanov611
YUliyaAvdeeva611
ElizavetaSamojlova611
PolinaSidorova611
LyubovZaharova611
IlyaAlekseev611
MatvejYAkushev611
SvyatoslavTarasov611
NinaOdincova710
BorisSimonov710
DmitrijTrofimov710
YAkovRozhkov710
FyodorDrozdov710
GlebStrelkov710
AngelinaLukina710
ValeriyaNovikova710
GrigorijKapustin710
VitalijPanfilov710
AnnaOsipova811
GeorgijBaranov811
YUliyaVishnyakova811
ValentinaBolshakova811
LeonidKryukov811
VladislavCvetkov811
LyubovBorisova811
AnfisaKalashnikova811
SnezhanaMorozova811
KristinaMyasnikova811
KristinaSmirnova811
VyacheslavEliseev913
IvanEfremov913
AnatolijZHdanov913
GeorgijNoskov913
ArtyomSergeev913
ArinaEvseeva913
AngelinaVoroncova913
EkaterinaUstinova913
RaisaLapina913
LeonidIgnatov913
SnezhanaSeliverstova913
SemyonBiryukov913
NikolajSokolov913

What does our window function do?

The expression PARTITION BY Student_in_class.class divides all rows of the table into partitions based on the class field. This means that for each row, only the rows where the class field matches the class field of the current row will be passed to the window function.

The COUNT function returns the number of rows passed to it, giving us the number of students studying in each class.

Execution order of window functions in SELECT

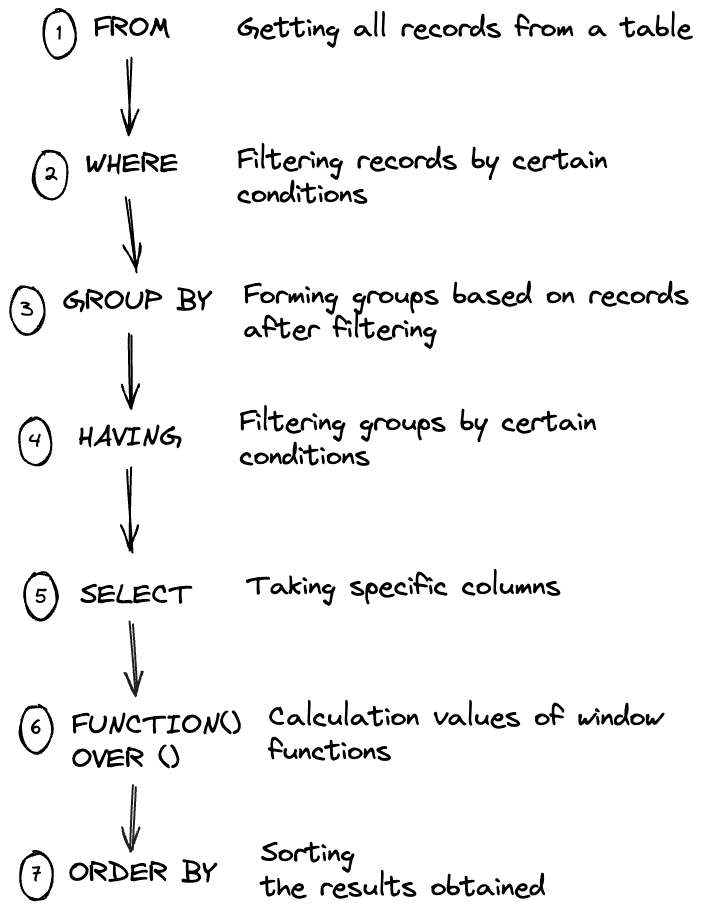

When using window functions, it is important to understand the order in which they are executed. As shown in the diagram below, windows are processed as the penultimate step, after filtering and grouping, but before the final sorting of the query results.

Execution order of window functions in SELECT query

Conclusion

In this article, we briefly covered the concept of window functions, their capabilities, and practical benefits. In the following articles, we will delve into each aspect of window functions in more detail.

To wrap up, let's test your understanding:

What is the key difference between window functions and aggregate functions with grouping in SQL?
